Logistics pager for freight forwarders, logisticians

More and more logisticians use logistics pagers to improve the process on the forwarding center.
The truck driver can rest comfortably and is reliably informed by pager call when it is his turn.


Logistics Pager up to 1.5km range

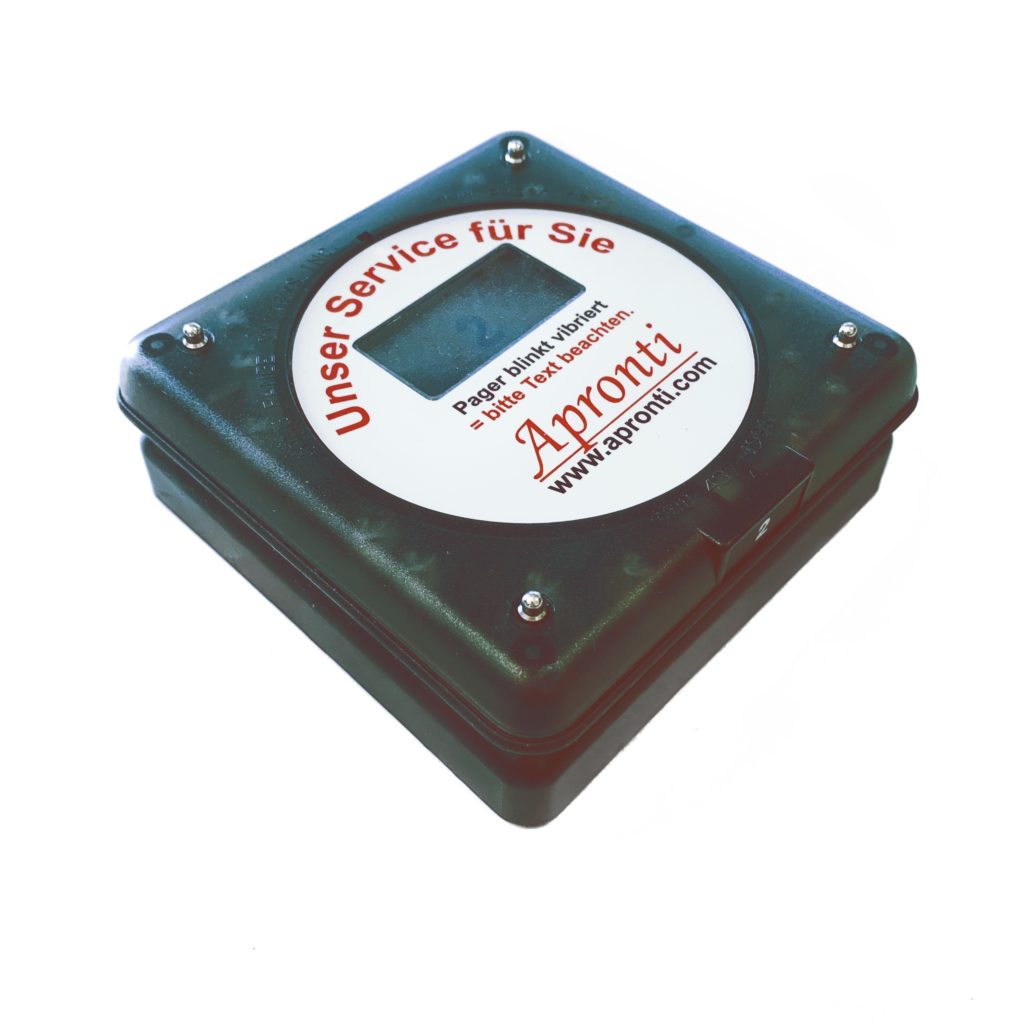

Logistics pager in coaster form

High range up to 1.5 km. Please order charger.

A charger can charge up to 10 coasters at the same time.Staffelpreise already available from 10 pieces.

Logistic pager activated via radio

  • Dimensions 10 x 10 x 2 cm
  • Battery life approx. 48 hours
  • Range approx. 500m to 1.5 km through FM band (446.15625 MHz)
  • Case-safe, splash-proof, robust housing
  • Vibrates, flashes, beeps or lights up (also combined)
  • The range is adjustable. Driver is made aware of the entrainment by beeping.
  • Channel per area individually adjustable, thus no overlap with neighboring forwarding agencies.

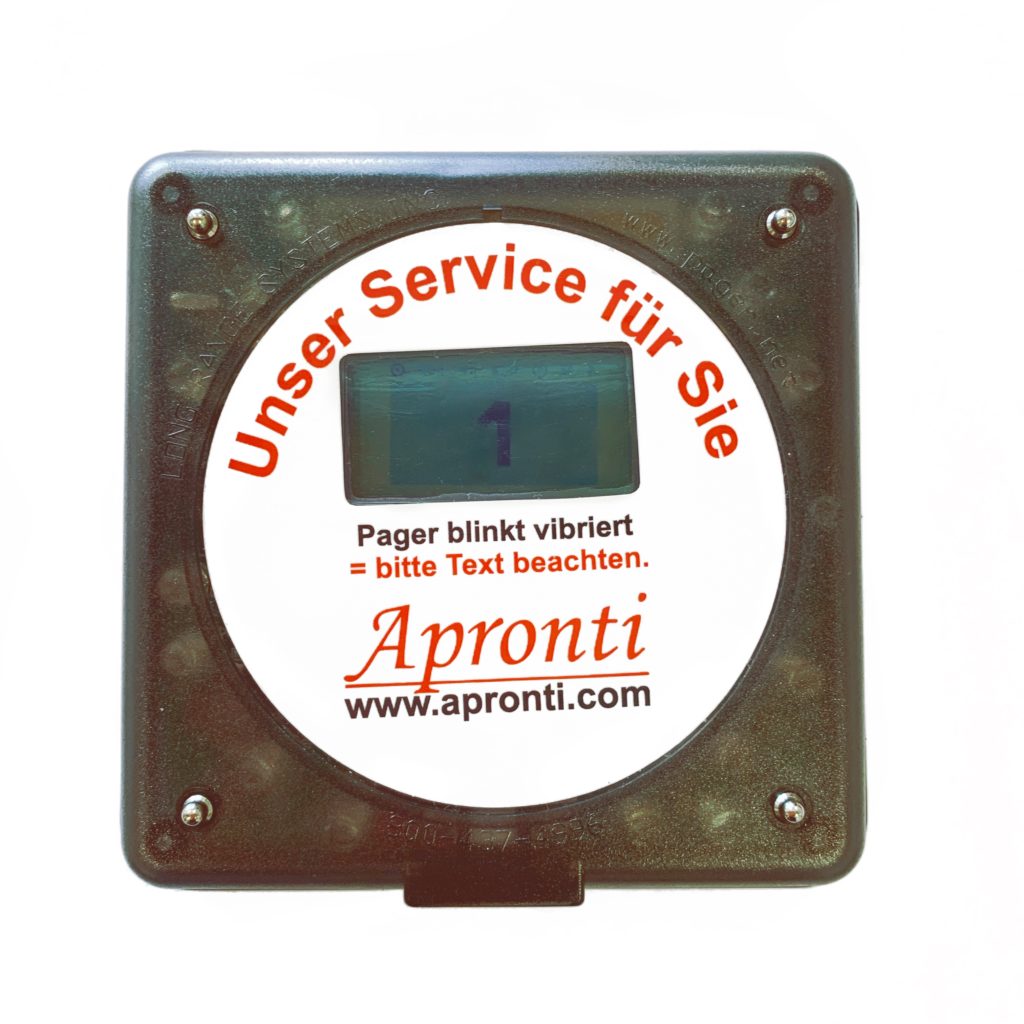

Logistics Pager up to 1.5km range, battery operation with LED number display

Logic pager in coaster form with additional LED-display

High range up to 1.5 km. Please order charger.

A charger can charge up to 10 coasters at the same time.Staffelpreise already available from 10 pieces.

Description:

  • Logistics pager, which is activated via radio
  • Dimensions 10 x 10 x 2 cm Battery life approx. 48 hours
  • Range approx. 500m to 1.5 km through FM band (446.15625 MHz)
  • Case-safe, splash-proof, robust housing Vibrates, flashes, beeps or lights up (also combined)
  • Channel per area individually adjustable, thus no overlap with neighboring forwarding agencies Please order charger.
  • A charger can charge up to 15 logistics pagers at the same time.

Logistic pager in coaster shape with TEXT display

Logistic pager activated via radio

Text messages on display to give precise instructions.

  • Dimensions 10 x 10 x 2 cm
  • Battery life approx. 48 hours
  • Range approx. 500m to 1.5 km through FM band (446.15625 MHz)
  • Case-safe, splash-proof, robust housing
  • Vibrates, flashes, beeps or lights up (also combined)
  • The range is adjustable. Driver is made aware of the entrainment by beeping.
  • Channel per area individually adjustable, thus no overlap with neighboring forwarding agencies.

Charging station for logistics pagers in coaster form

Charging Station Logistics Pager (Coaster Shape)

  • Same shape as coasters with metal contacts.
  • Up to 15 pagers can be charged at the same time.
  • We recommend to use 2 charging stations (1 x freshly charged pager, 1 x returned pager)

Metal holder for logistics pager including charging station

Stable metal holder for logistics pager including charging station

  • Practical holder for the pagers, which is also a charger for the logistics pagers.
  • Up to 15 pagers (coaster shape) can be easily stowed and loaded at the same time.
  • Dimensions: 21cm width, 38cm height, 13cm depth

Powerful logistics pager to inform people / drivers

With this pager persons / drivers / employees / visitors can be informed quickly and comfortably by radio. The pager works with vibration, text display and beep.

The type of paging and pager strength can be defined at the transmitting station, as well as in a pager setting menu.

In contrast to DECT or WLAN, the pager is completely radiation-free and does not emit any signals – it only receives. So there is no additional radio radiation exposure, as with many other solutions based on DECT / WLAN.

The pager has a belt clip and can easily be worn on the shirt pocket.

Drivers in the logistics area can use this pager to comply with the rest times during the waiting time, since they are not running continuously, e.g. on display boards until they are ready to be unloaded.

Thus, the waiting time until unloading to rest, the driver can wait relaxed.

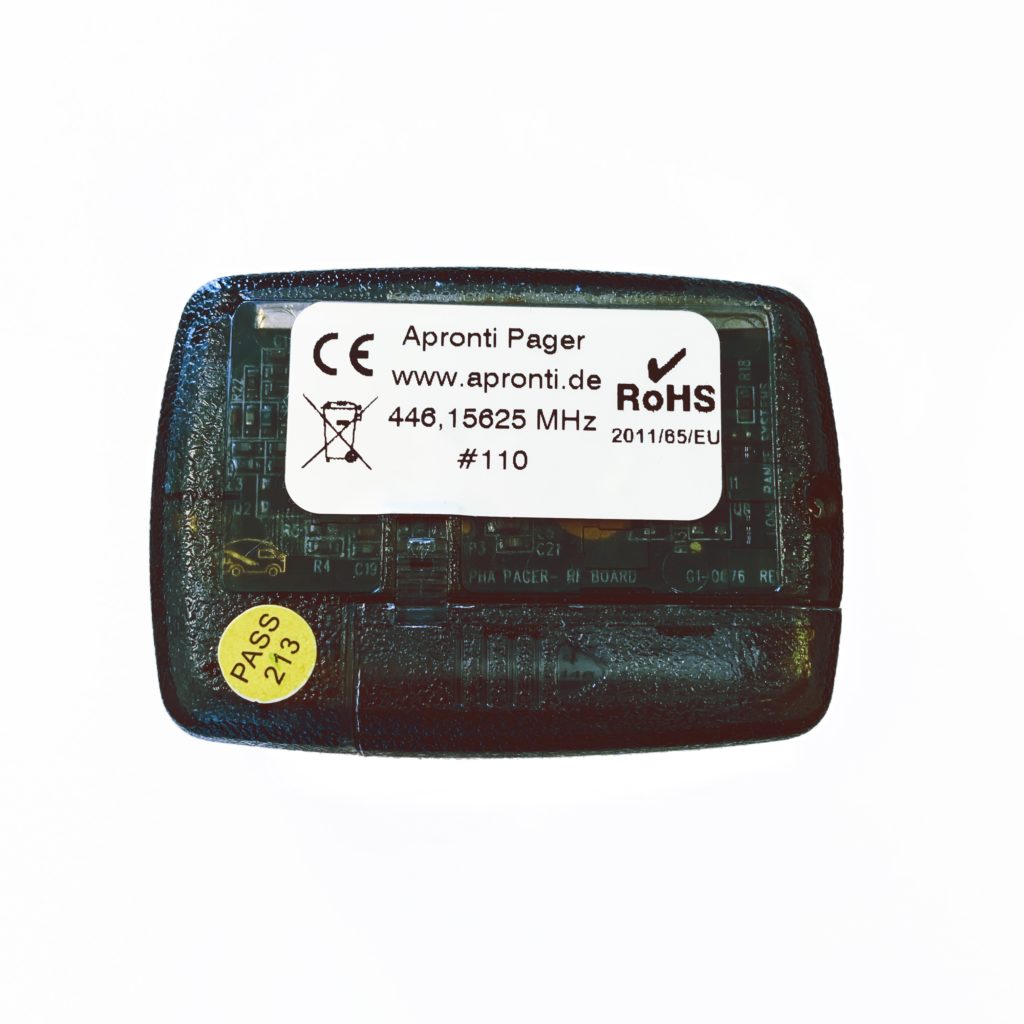

The logistics pager uses a standard AAA battery that lasts up to several weeks. The receive frequency 446.15625 MHz is free of registration and fees and has been approved by RegTP.

The pager is sent to the pager via the key sending station or the Alpha11 pager software, which can also manage the waiting list and automatically logs the average waiting times.

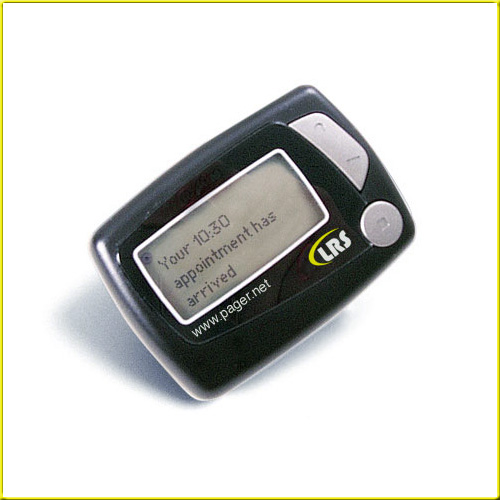

Technical Data Driver / Logistics Pager:

  • 4-line logistics / driver pager
  • Receives messages up to 255 characters in length
  • Fixed texts can be deposited on the transmitting station (such as food ready, ice cream pickup, driver on ramp 7, etc.)
  • Battery operation with 1 x AAA battery (about 30 days in standby)
  • Vibrates, beeps and displays received message in the display
  • Practical belt holder
  • Dimensions pager without belt holder: 64mm x 44mm x 18mm (length, width, thickness)
  • Measurements with belt mount: 66mm x 50mm x 30mm
  • Multifunction button for adjustments
  • Deactivating the calls by pressing a button
  • Several messages remain saved and can be displayed again
  • Automatic standby mode to save energy, as well as automatic shutdown (can be disabled)

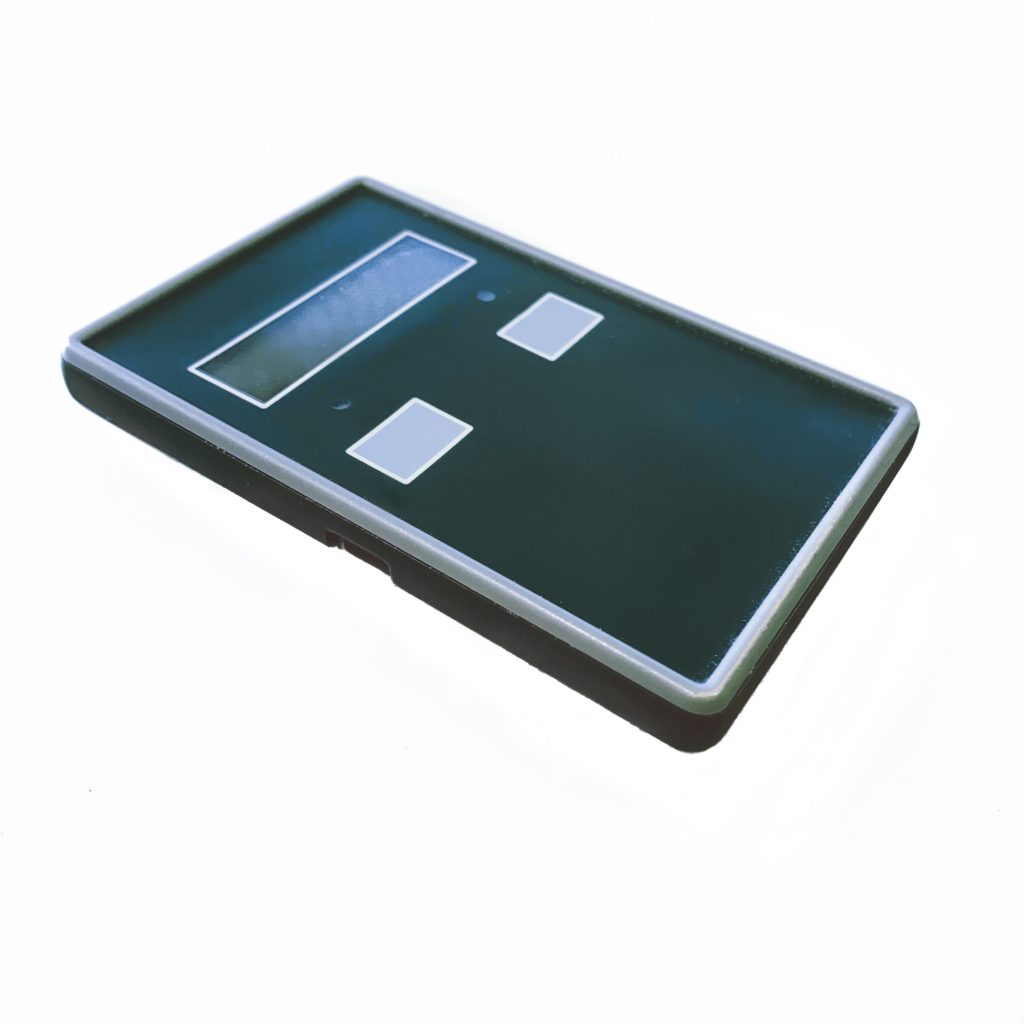

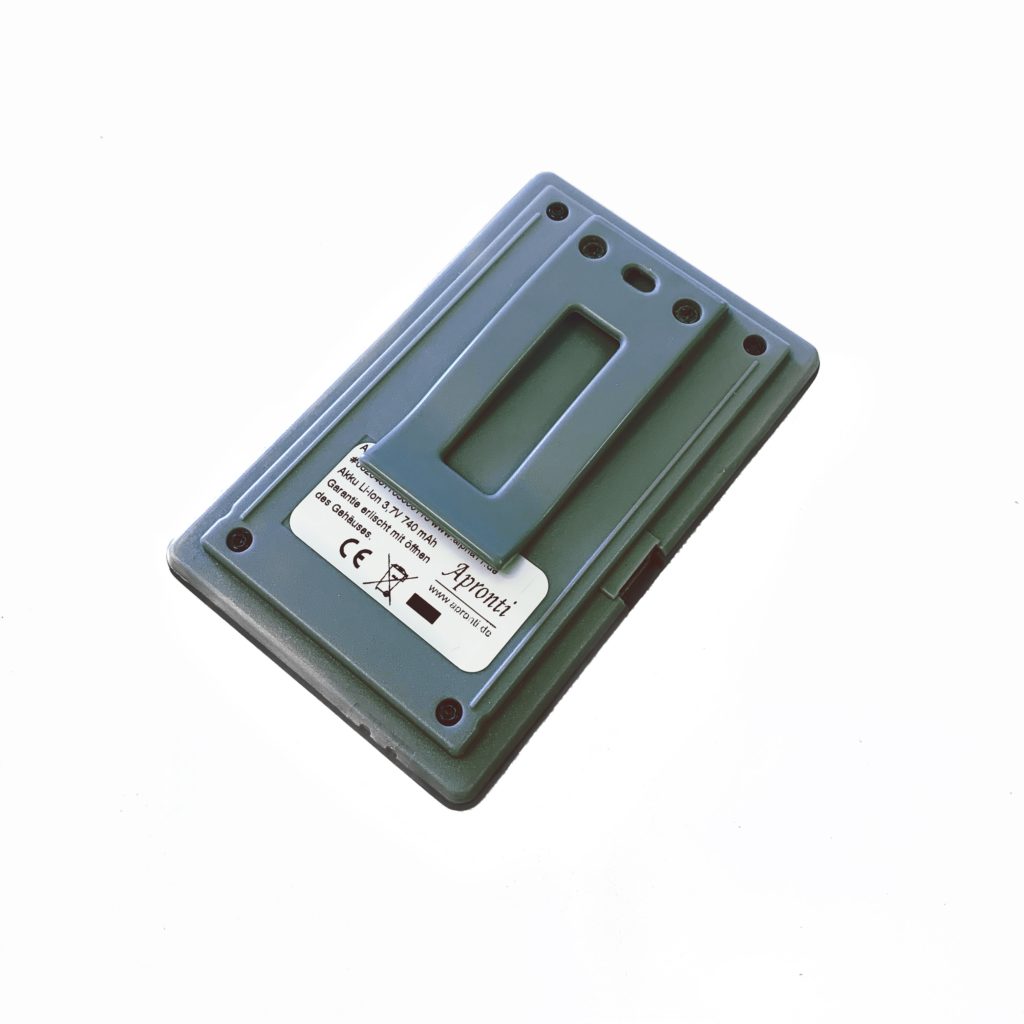

Pocket radio receiver for incoming pager calls, stackable pocket pager

The pager radio receiver receives all paging calls triggered by the paging button.

The pocket receiver vibrates on incoming paging and displays the sender name.

Charging via charging station, please order this separately, or via USB power adapter (Micro-USB) Up to 32 Apronti Call paging buttons can be assigned to recipients Vibration is easy to feel

Applications:

  • Restaurant – Service call at the table for the guest
    Kitchen call to inform waiter about finished food
  • Hotel lobby, instead of traditional bell (now 90m range)
  • Fitness Center – On the devices to call trainers to the device
  • Practices – To call a nurse in the treatment room Doctor – In the pocket of the doctor’s gown to call a nurse
  • Logistics – As a ramp detector, when call buttons are attached to freely announce ramps

Business card size: 9 x 6 x 1.2 cm

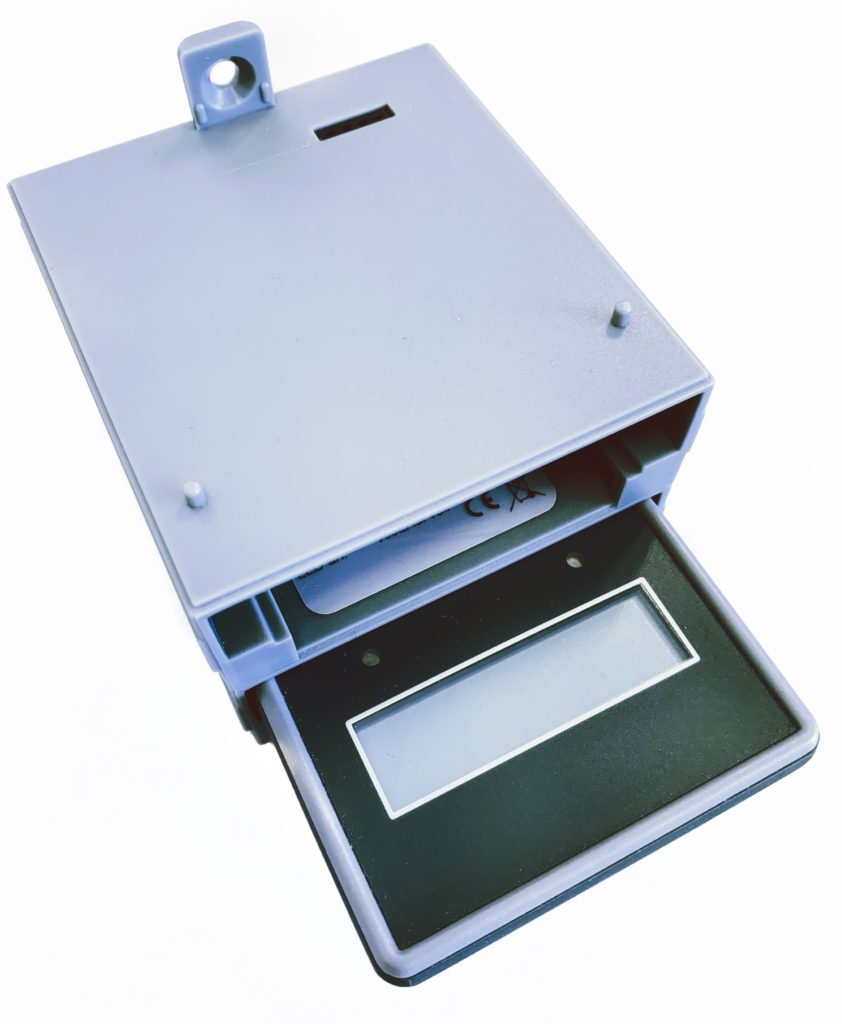

Optional charging station for the pocket pagers

Up to 10 compartments can be stacked on top of each other.

Practical and space saving.


Logistics Pager ramp-free detector with 200m range

Professional paging button at e.g.

Report free ramps in logistics to the dispatcher.

16 characters of text can be deposited, which are displayed on the pager.

Use in harsh environment. Sturdy polycarbonate housing with 1 or 2 call buttons in various designs, with control LED, UHF transceiver, automatic call repetition, optionally for battery operation (2 x 1.5V battery type AA), optional for continuous supply with plug-in power supply, additional relay output, etc.

Wireless range approx. 200m depending on the environment.
Can be extended with radio repeaters up to 4x.

The receiver still requires wristband, pocket or table pager receivers. Please order these as needed.

  • Dimensions: approx. H160 x W80 x D55 mm
  • Radio frequency. 869 MHz
  • Battery operation (2x AA 1,5V)
  • Long-term operation with a battery pack over several thousand calls, or several months

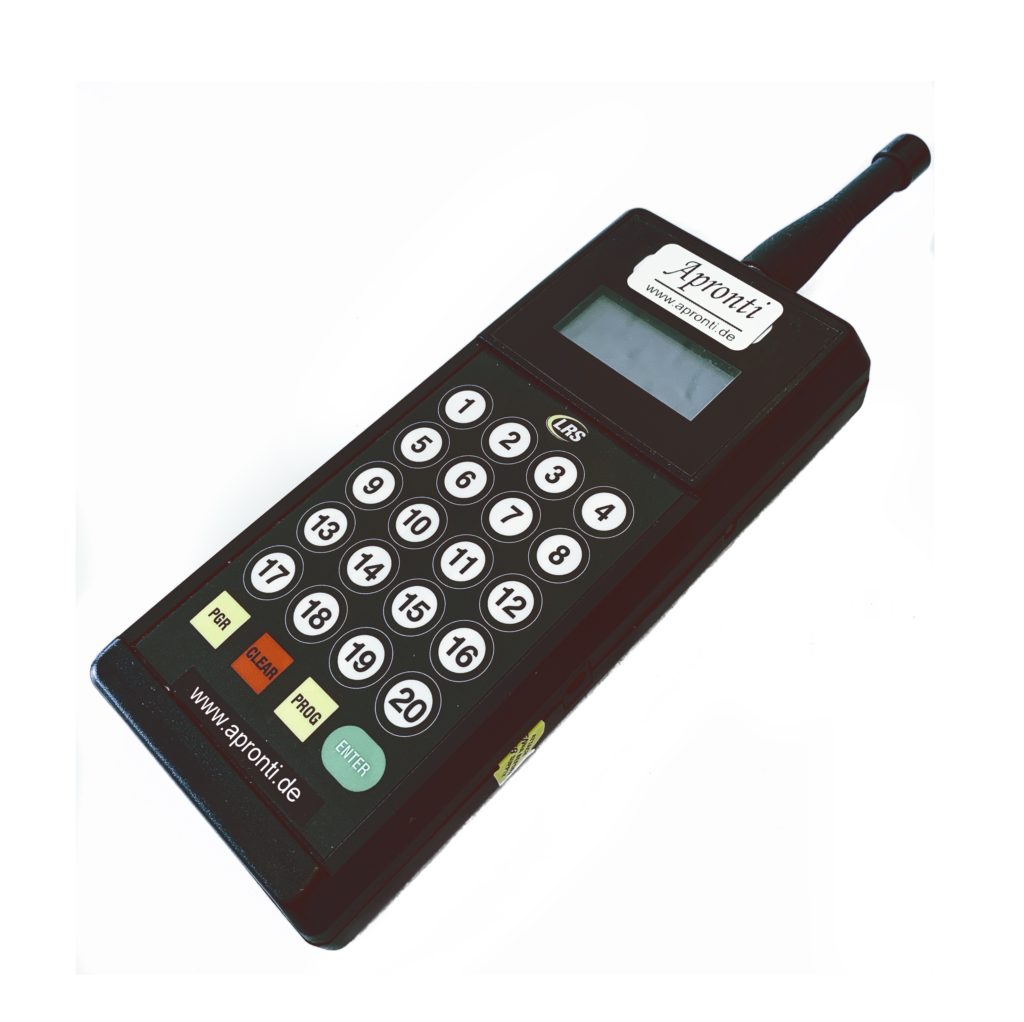

Sending station for logistic pager

With the transmitting station, the recipients are informed about an event.

  • Range approx. 1.5 km via VHF radio (free radio)
  • Dimensions 10 x 21 cm
  • Power connection 220V
  • Range approx. 500m to 1.5 km through FM band (446.15625 MHz) supports up to 9,999 recipients
  • Transmission channel per area individually adjustable, thus no Tailings with neighboring forwarding agencies
